basicDIM wireless user interface

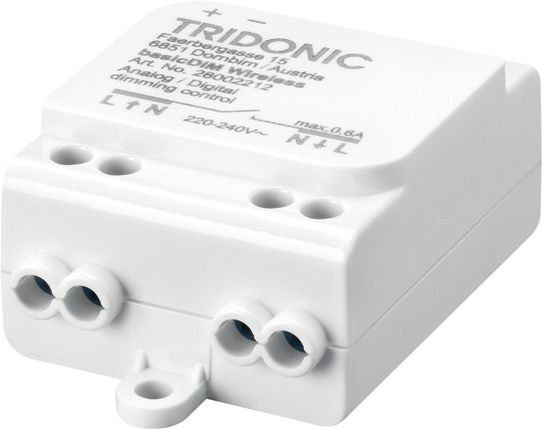

Tridonic’s compact basicDIM wireless control module makes for easy wireless communication with up to 127 luminaires. It is suited to projects that need no direct IP connection and which aim to achieve more lighting comfort in a cost-effective manner and with no additional wiring. The control module can be integrated into existing luminaires easily and establishes a mesh communication network automatically. Communication is wireless via Bluetooth 4.0, requiring no DALI wiring.
The module is fitted with a configurable 1-10-V and DALI interface along with a switched relay contact, and allows dimming functions and even colour temperature controls to be implemented with ease. Groups can also be set up and scenes created.
basicDIM wireless
Luminaires can then be controlled via an associated smart button (user interface), or using the corresponding free apps (Android or iOS operating systems).

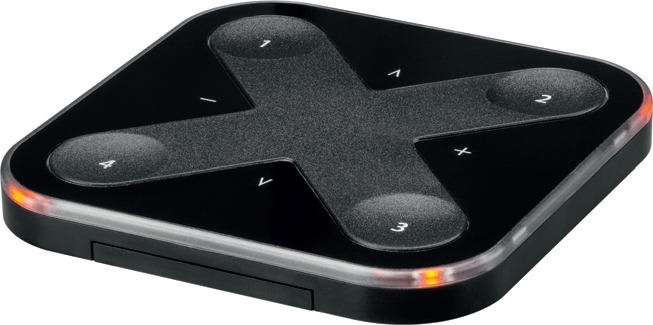

The pre-configured button for wall mounting works using batteries. It has a clear and manageable control panel with eight buttons that can be used to switch luminaires on and off or for the dimming functions. In addition, light settings can be accessed and colour temperatures set.
The luminaires are automatically scanned for and detected using the free apps for Android or iOS.
