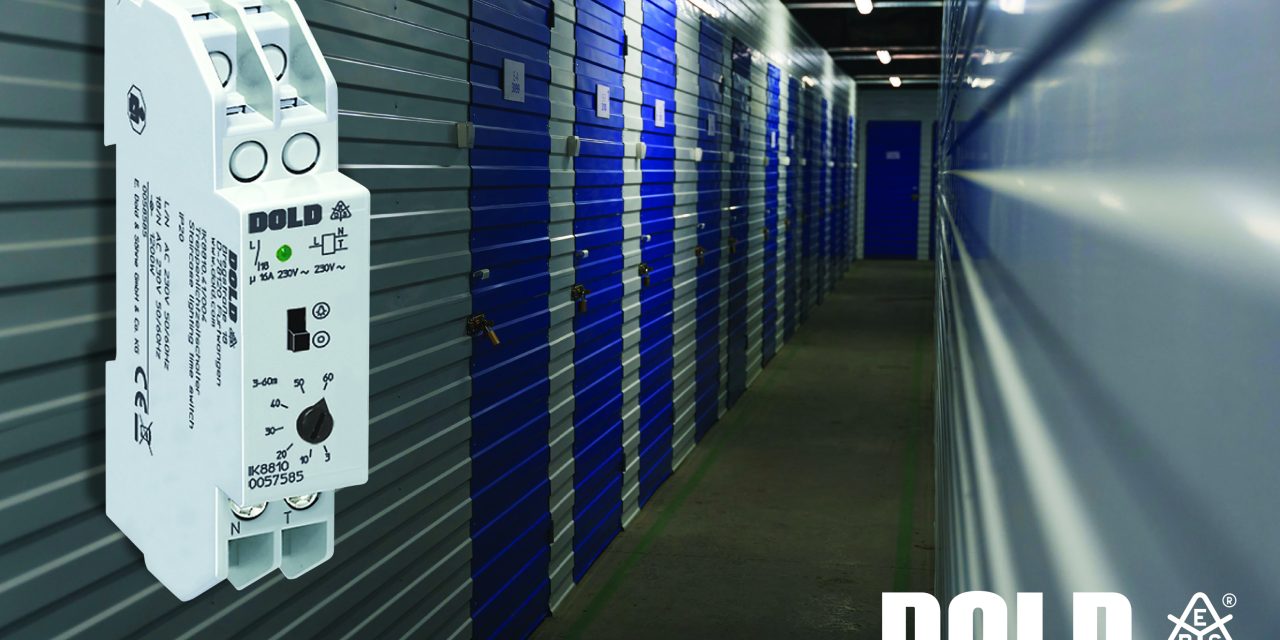

DOLD’s MINITIMER series of staircase lighting time switches are engineered to outperform and outlast, boasting up to 30 million mechanical switch cycles—three times more than standard/cheaper models. These highly durable and efficient switches are ideal for areas requiring intermittent lighting, helping to reduce energy costs while offering a ‘fit-and-forget’ product life.
Load Ratings: Available in two powerful options:
• IK8810 series: Supports up to 1200W.
• RK8810 series: Handles up to 200W.
Time Settings: Choose from pre-set periods:
• 30 secs – 10 mins.
• 3 mins – 60 mins.
Adjustment Methods:
• IK8810 series: Screwdriver-set pre-set for fit & forget applications
• RK8810 series: Rotary dial adjuster for easy changes to time period.
Available in re-triggerable and non-retriggerable versions, some models include a pre-warning function and a continuous lighting mode easily activated via a slide switch.
Compliant with EN 60 669-1 and EN 60 669-2-1 standards, the MINITIMER comes in both 4-wire and 3-wire configurations, with a neutral (N) connection at the push button. Rated at 16 amps.
DOLD Industries, dold.co.uk
