The new product joins Ovia’s expanding Utility range of luminaires.
Designed to adapt to any environment, it delivers flexibility, longevity and energy efficiency in one compact unit.

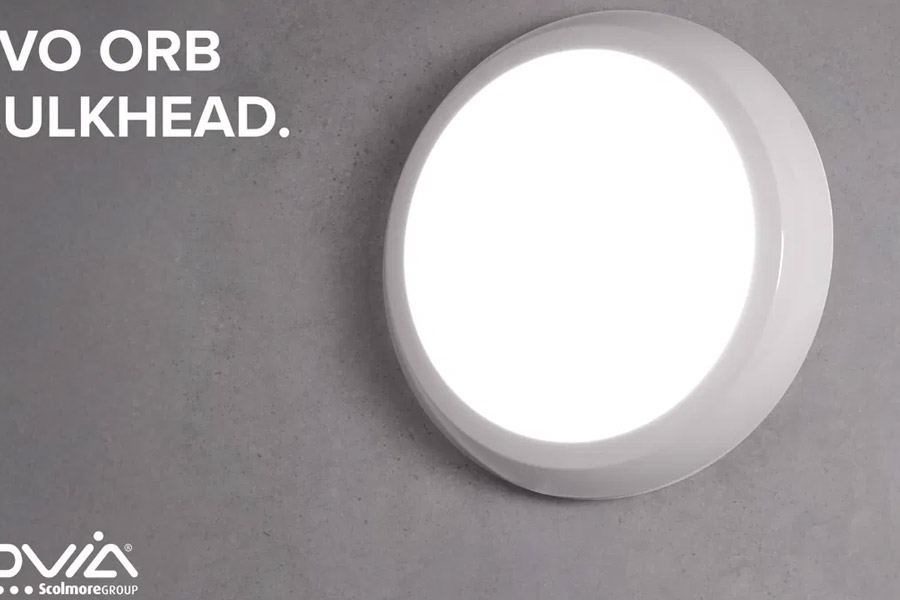

Distinguished by its sleek 78mm depth, the Evo Orb combines a contemporary design with robust engineering. With an IK08 impact rating and IP65 ingress protection, it offers exceptional resistance to dust, water and mechanical impact – making it ideal for demanding environments.
Offering an efficacy of 120lm/W, the Evo Orb features power-selectable outputs of 10W, 13W, or 15W and CCT selectable options of 3000K, 4000K, or 6000K, providing customisable lighting solutions to suit a wide range of applications. It is available in four versions – standard, microwave, emergency and microwave & emergency – ensuring both energy efficiency and full compliance with the BS 5266-1 emergency lighting standards. It comes with a five-year warranty.
Quick connections: the fast-fit terminal block allows tool-free wiring for a quicker install, while the integrated Molex style connector ensures a secure, plug-and-play connection, saving time on every job.
Quick-release clip: the gear tray comes pre-attached to the diffuser, streamlining installation. When needed it can be easily disconnected from the base using the quick release clip. A suspension wire allows the diffuser to be removed for easy installation and access, without it being separated from the base.
Secure and quick entry: the diffuser easily twists off the base for quick access during installation or maintenance. For added peace of mind, a security screw is included to firmly lock the diffuser in place once fitted. BESA mountable base – designed to align with standard BESA box spacing for quick and secure mounting, with no need for additional brackets or adaptors.
M20 Gland entry points: featuring four M20 gland entry points for flexible wiring options. The bezel also includes knockouts to accommodate glands.
