New Sinergy KLIK 3 puts energy usage data at your fingertips

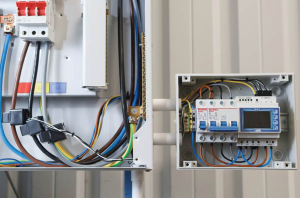

marshall-01Marshall-Tufflex’s new digital sub-meter the Sinergy KLIK 3 is a fast, accurate and cost-effective way to measure energy usage across a range of installations, from buildings to machines/production lines, electrical circuits and even floors/departments.

KLIK 3 offers industry-leading performance with the ability to wire its CTs over long distances, allowing energy monitoring of large or diverse sites. From one to 247 KLIK 3 units can be wired back to a logging/data storage unit, making the sub-meter a flexible and cost-effective solution. Data can be monitored via the internet.

This easy-to-install sub-metering solution measures power usage at the most appropriate level. Armed with this data, managers can implement an effective energy management programme.

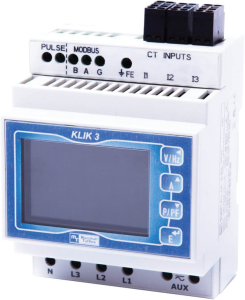

marshall-02KLIK 3 is a non-invasive, clip-on solution that is quick and easy to install using either hinged clips or Flexeclamps. It uses the latest microprocessors and can measure 17 electrical parameters including total harmonic distortion (THD) up to the 31st harmonic, kW, kVAr, kVA, kW Max Demand, Power Factor, Import kWh and Export kWh. In short KLIK 3 is an accurate and cost-effective solution for the measurement and display of all major electrical and power quality parameters.

The Modbus-enabled units feature a DIN-rail enclosure, backlit LCD display and user programmable CT ratios, all accessible via an intuitive user interface.
