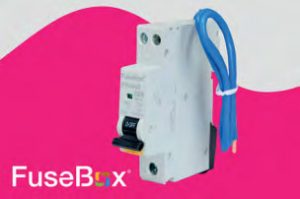

RTAM series of Mini RCBOs from FuseBox, with switched LIVE and NEUTRAL, provide the most comprehensive protection against overload, short circuit and earth leakage. Each Mini RCBO provides Type A – AC and pulsating DC protection up to 6mA.
Available in current ratings from 6A – 40A, a short circuit capacity of 6kA, and in B and C type tripping curves.
Its compact design, just 85mm high and 18mm wide, ensures plenty of space within the consumer unit for routing and connecting cables.
Final testing is quicker and easier as Line and Neutral conductors do not have to be disconnected for IR (insulation resistance) if the lever is in the OFF position.
Key features:
Current rating options: 6A, 10A, 16A, 20A, 25A, 32A, 40A
Number of poles: 1P+ N Switched
Breaking capacity: 6kA
mA rating: 30mA
Terminal capacity: 1-16mm2 L IN, 1-10mm2 L OUT
IP Rating: 20
Voltage: 230V 50/60Hz
Standard: BS EN 61009-1
