HellermannTyton Cable Scout+ cable installation system offers improved functionality and time-saving benefits.
The new and improved design enables electricians and electrical installers to install, inspect, illuminate, and retrieve cables quickly and easily via suspended ceilings, behind walls or floors, through small access holes, in cavities and many other applications.

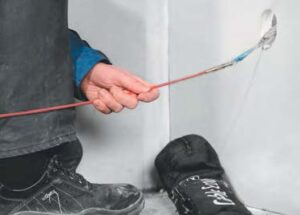

The cable routing tool consists of easy-fit cable rods for the safe installation of cables; even in the most challenging installations and difficult-to-access areas.
A redesigned grip enables the flexible cable rods, made of high-quality glass reinforced plastic, to be simply screwed together and fitted with any one of the clever attachments supplied with the tool.
The rods can be bent, pushed, or pulled and bear cable weights up to 200kg, whilst the three different diameters available (4mm, 5mm and 6mm), offer different bending radiuses to guarantee high flexibility at work. Available in five sizes with the ability to attach to a wide range of cable diameters, the cable grips – available as an accessory – provide a reliable and time-saving method for securing cables and pipes to rods.
The Cable Scout Cam, a high-quality, battery powered inspection camera for empty conduits, is available as an additional accessory. Ideally suited for photo and video recordings in the smallest of spaces, the inspection camera allows users to get a picture of hidden objects up to 10 metres, such as in empty conduits and above-suspended ceilings. The recordings can be shown in real-time on a smartphone or tablet through a free app.
Cable Scout+ is available in three sets: the Handy set for fitting into toolboxes, the Basic set designed for basic installations and the Deluxe set which is aimed at larger installations. All three sets include a range of useful attachments including a whisk which allows the cable rods to glide easily over obstructions, an LED beam to improve visibility in dark spaces and a strong magnet which can lift metallic tools up to 2.5kg in weight.
www.hellermanntyton.co.uk/competences/cable-rods-cable-scout-plus
